Find the path with YOLO, stay in the middle with RL

Two networks, each doing what it is good at. A YOLO segmentation model (Ultralytics) looks at the camera image and finds the path. A small reinforcement-learning policy looks only at that path mask and steers the Ackermann car so it stays in the middle of the ε track. The simulator makes the labelled training data itself.

1The goal

2Why two networks?

In tutorial 2 one network learned everything at once from raw pixels: what the track looks like and how to drive. Here the work is split:

• YOLO learns “where is the path?” That is supervised learning: thousands of images with the right answer. No trial and error, no reward.
• The policy learns “how do I steer?” That is reinforcement learning, but on a tiny, clean input: a black-and-white mask instead of a full image.

The big advantage shows when you move to a real robot. A real camera image looks very different from the simulator, but a path mask looks the same: so you can retrain only YOLO on real photos and keep the policy.

3What you need

As in tutorials 1 and 2 (the robotSimulatorAPI repository, Node.js 22+, Chrome, Python 3.10+), plus Ultralytics:

pip install ultralytics stable-baselines3 gymnasium

The script is python/track_yolo.py; every step is one command:

node server.mjs                         # terminal 1: the simulators
python python/track_yolo.py dataset   # 1. images + labels        (~1 min)
python python/track_yolo.py yolo      # 2. train YOLO11n-seg      (~40 min CPU, minutes on a GPU)
python python/track_yolo.py rl        # 3. train the policy       (~10 min)
python python/track_yolo.py baseline
python python/track_yolo.py eval      # 4. a lap with YOLO in the loop
python python/track_yolo.py watch --gif lap.gif

4Step 1 · a labelled dataset, made by the simulator

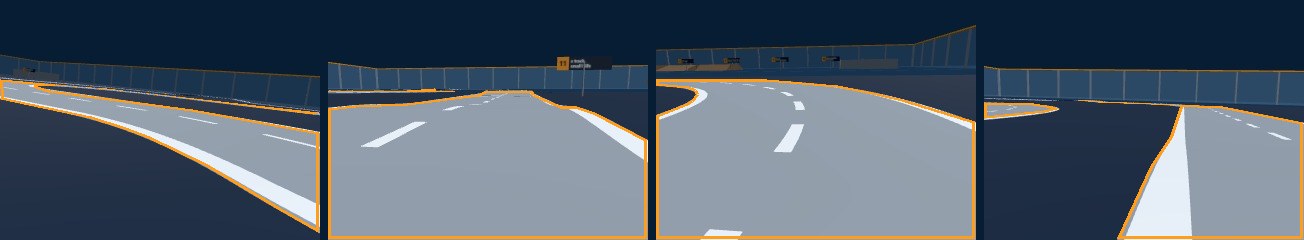

Labelling images by hand is the slow part of every segmentation project. Here the simulator knows exactly where the path is, so it draws the label itself: next to the normal camera view (view: "robot") there is a mask view (view: "mask") of the same camera, in which only the path is drawn, white on black.

_, cam = api.reset(car, lane="track", start=s, offset=e, yaw=a,          # somewhere on the track
                   image={"view": "robot", "width": 320})        # the camera image (JPEG)
mask = api.frame(car, view="mask", width=320)                         # the label (PNG)

• Every view a driving robot gets: a random spot on the track, up to 55 cm beside the centre line and turned up to ±50°, so YOLO also sees the path from the edge and at an angle.
• Three robots: mostly the Ackermann's camera, plus the skid steer and 4WD (their camera sits at another height).
• From mask to YOLO label: OpenCV finds the outline of the white area; every outline becomes one line 0 x1 y1 x2 y2 … (class 0 = “path”, coordinates 0 … 1). Ultralytics reads that format directly.

track_data/
  images/train/train_00000_ackermann.jpg   …   labels/train/train_00000_ackermann.txt
  images/val/…                                 labels/val/…
  track.yaml                                   # path, train, val, names: {0: path}

5Step 2 · train YOLO11n-seg

We start from yolo11n-seg.pt, the smallest YOLO11 segmentation model (2.9 million weights), already trained on the COCO photo set: it knows edges and shapes, and only has to learn what our path looks like (transfer learning).

model = YOLO("yolo11n-seg.pt")
model.train(data="track_data/track.yaml", imgsz=320, epochs=30, batch=16,
            project=os.path.abspath("runs/segment"), name="track")

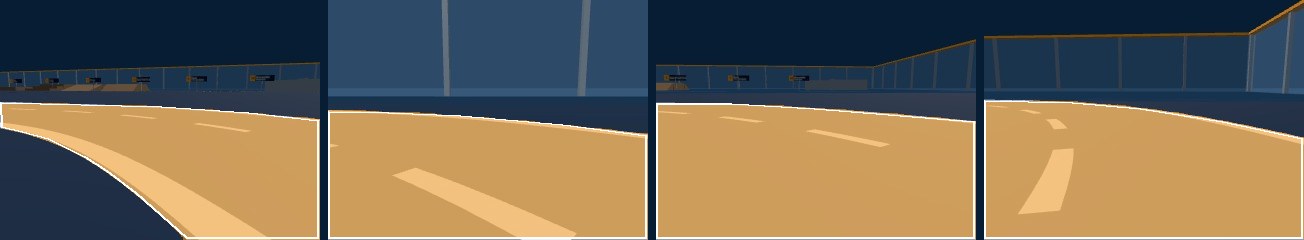

mAP50 counts a found path as right when it overlaps the label for at least 50 %; mAP50-95 averages over stricter thresholds up to 95 %, so it also rewards exact edges.

6Step 3 · RL: stay in the middle

def noisy(mask, rng):
    m = mask > 127
    if rng.random() < 0.5:                            # ragged edge: shrink or grow one pixel
        shift = np.roll(m, rng.choice([-1, 1]), axis=rng.integers(0, 2))
        m = m & shift if rng.random() < 0.5 else m | shift
    m ^= rng.random(m.shape) < 0.02                     # speckles
    if rng.random() < 0.15:                           # a missing chunk
        y, x = rng.integers(0, MH - 8), rng.integers(0, MW - 12)
        m[y:y + 8, x:x + 12] = False
    return m.astype(np.uint8) * 255

e = offset / 0.35                    # 0 in the middle, ±1 at the edge of the path
reward = 1 − e²                      # 1 in the exact middle, 0 at the edge
reward = −10, attempt over           # when it leaves the path

python python/track_yolo.py rl
Saved track_middle_ppo.zip after 11.1 min

7Step 4 · YOLO in the loop

Now the real test: camera image → YOLO → mask → policy → steering, a whole lap from the chequered line.

python python/track_yolo.py baseline
python python/track_yolo.py eval --masks sim     # the simulator's perfect masks
python python/track_yolo.py eval                 # masks from YOLO

Two things stand out. The policy steers as well with YOLO's masks as with perfect ones (even a bit better: YOLO's edges are smooth, and the policy was trained on flawed masks). And a line follower that is told its exact position still stays closer to the middle: the policy has to estimate it from a 64 × 48 mask, where one pixel is a few centimetres. Its largest deviations are in the sharp bends, where it cuts the corner a little (its lap is also shorter).

YOLO took 15 ms per image on the laptop's CPU: fast enough for ten decisions a second.

8An experiment with the reward

With 1 − e² a small deviation costs almost nothing (4 cm off: 0.013). Would a reward that pulls harder near the middle, 1 − |e|, keep it more centred? We trained it to find out:

python python/track_yolo.py rl --reward linear --policy middle_linear.zip

Not better. So the reward was not what limited it, the observation was: a coarse mask can't show a few centimetres. That is a typical RL lesson: before tuning the reward, ask what the agent can actually see.

9Towards a real robot

1. Make a path on the floor (tape, paper, paint) and put a camera on your robot, about where the simulator's is.
2. Take a few hundred photos while driving, label the path (or let YOLO pre-label them and correct), and fine-tune runs/segment/track/weights/best.pt on simulator + real images together.
3. Keep the policy as it is: it only sees masks.
4. Export YOLO for the robot's computer, for example yolo export model=best.pt format=onnx imgsz=320 (or tflite for a small board), and send the steering to the motors as in the simulator.

10Experiments

11Troubleshooting
